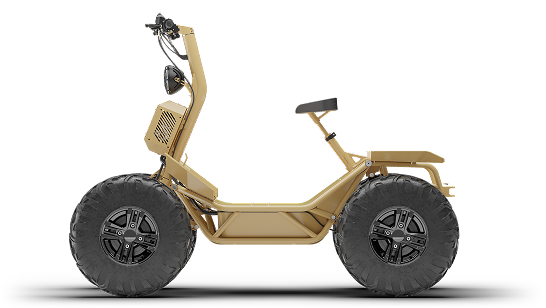

STEINADLER PRO
L7E-A1
The E-moto for the electric age
EU L7e-A1 Certified
Drivable with your regular license (Class B)
Optional Rear Seat
Two-seat layout: forward- or rear-facing (available later)

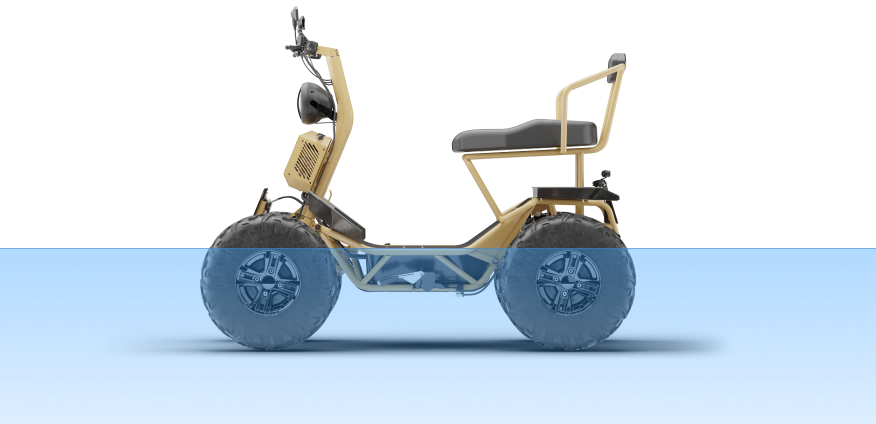

IP67
All weather protection
Quick-Release Tyre System
Instant street/off-road tyre switching for maximum adaptability.
Full-Time 4WD
High Ground Clearance
Exceptional capability over challenging terrain
Dual Braking&Fast Charge
Long Range
Perfect balance of safety, convenience, and range for extended trips.

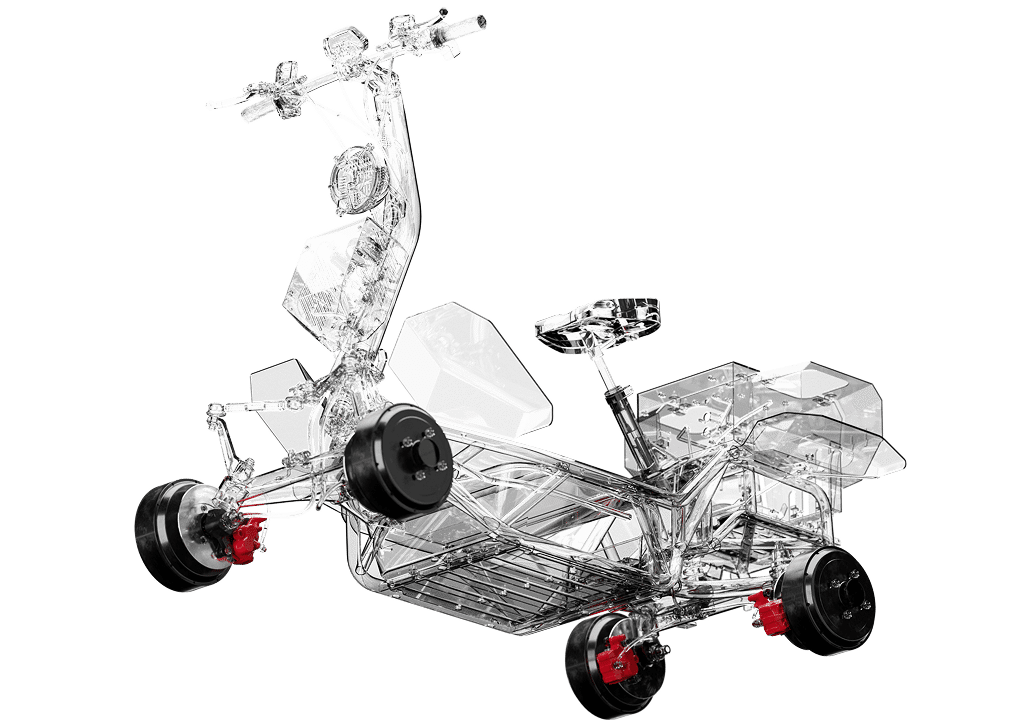

Advanced Intelligent Vcu
Exclusive VCU with smart wheel‑hub power management—comparable to premium systems (eg., Tesla, Mercedes‑Benz, Audi)—with motor controllers customizable up to 4.5 kW per wheel.
01
02
03
04
Four Versions Comparison
RJ Tech Steinadler Series Specifications
Comparison of dual version
appearance

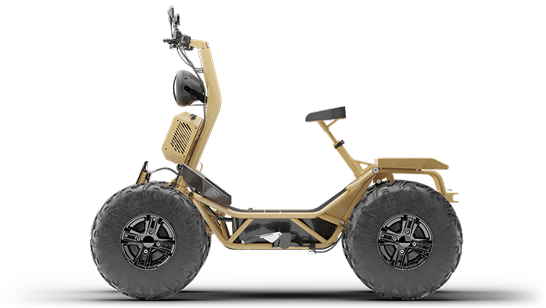

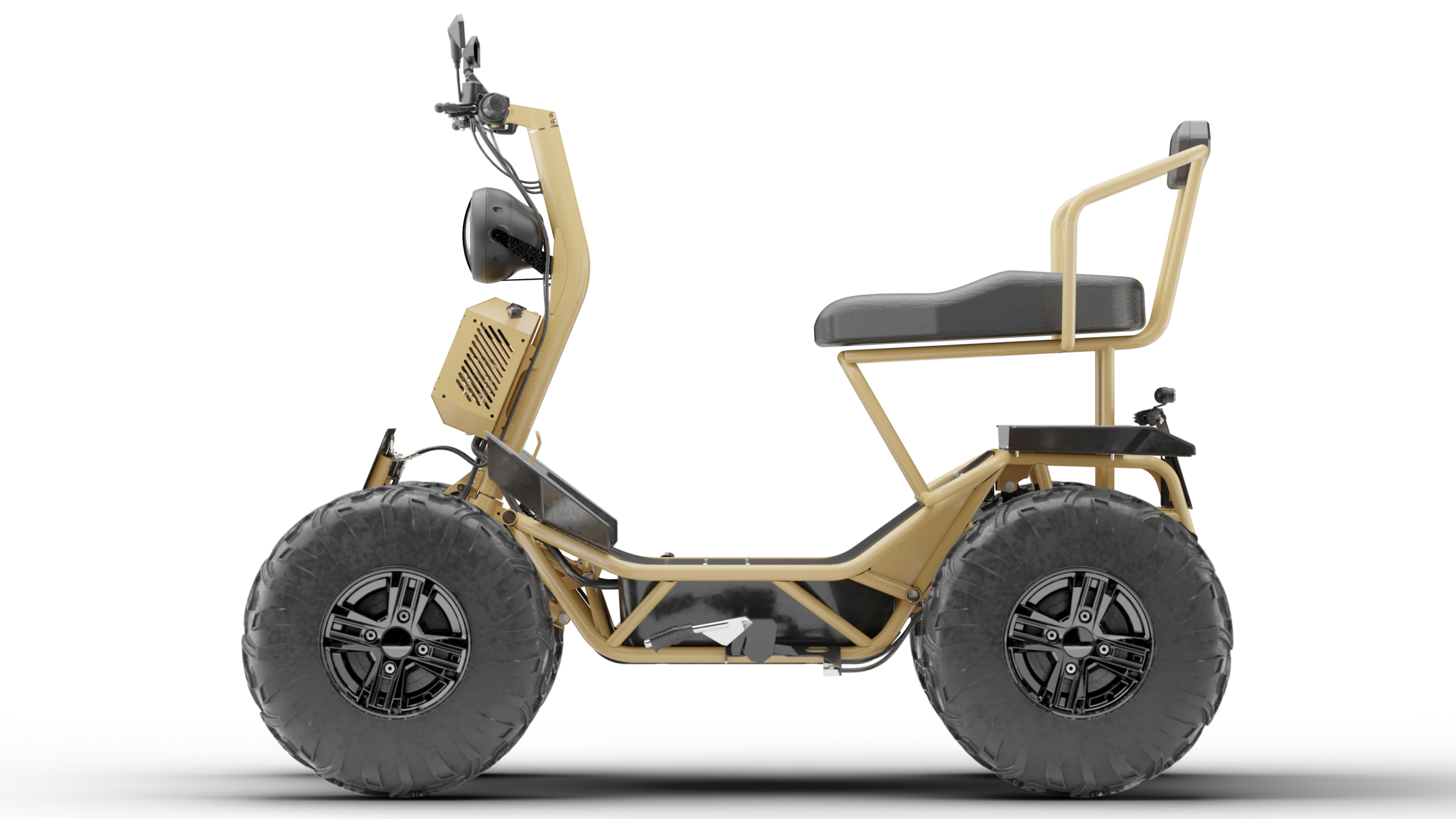

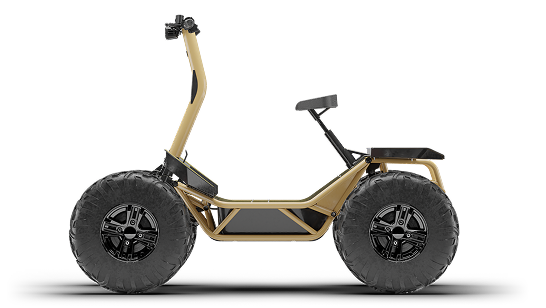

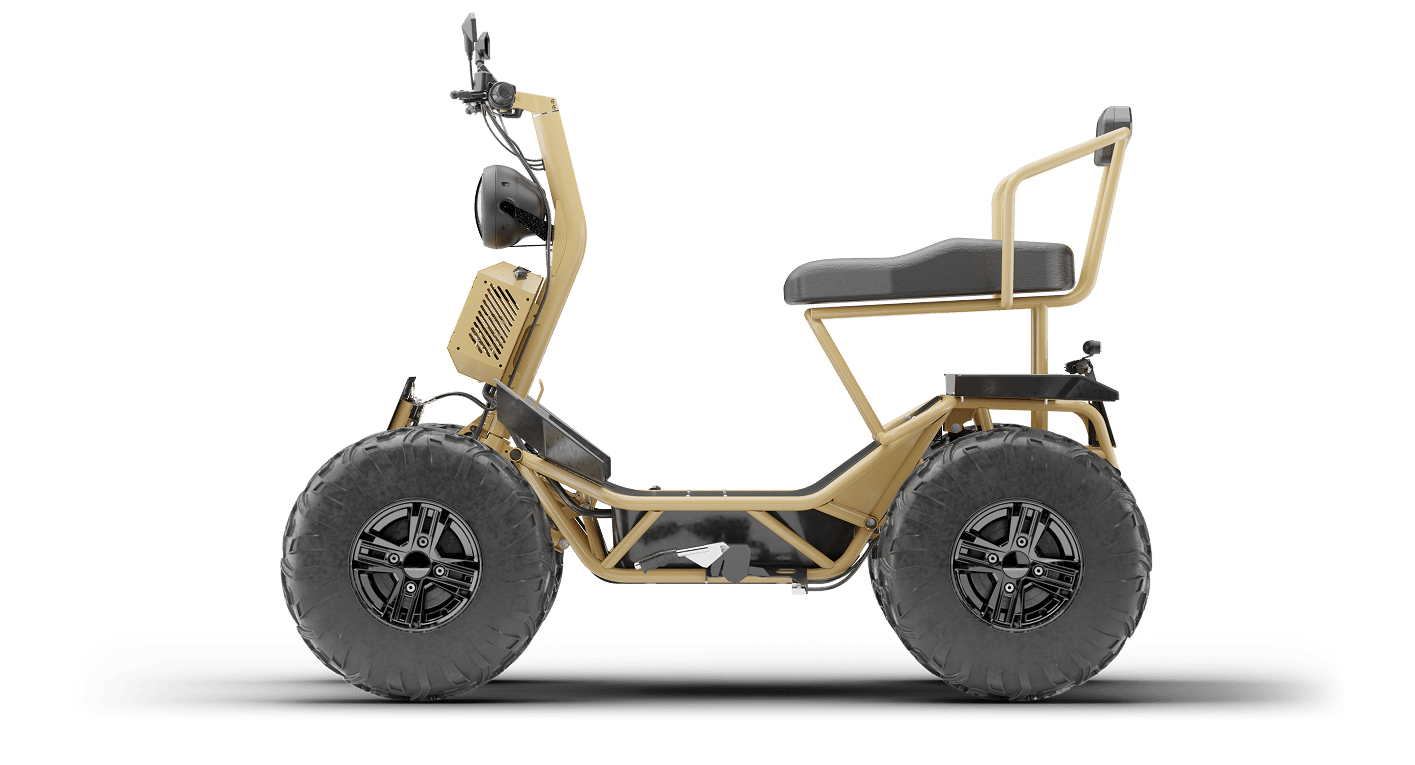

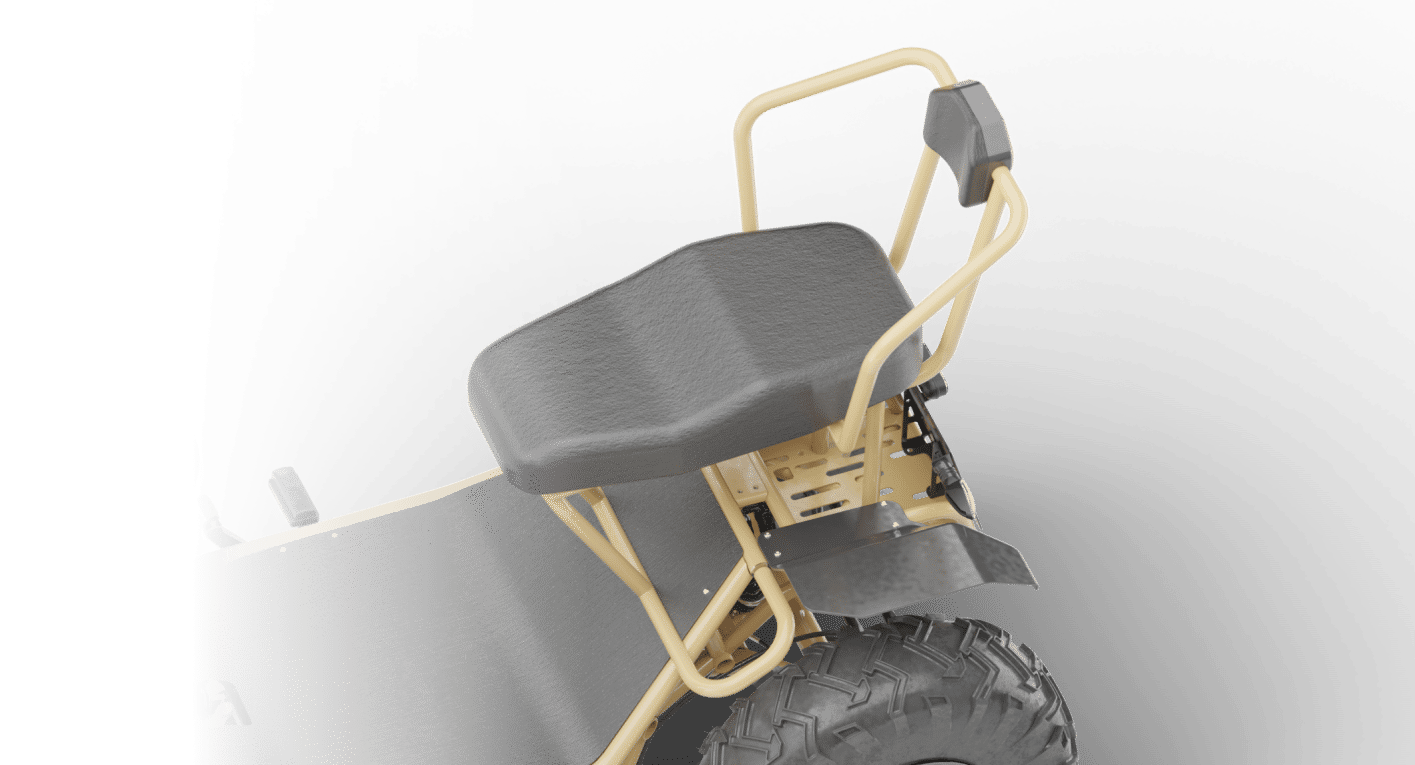

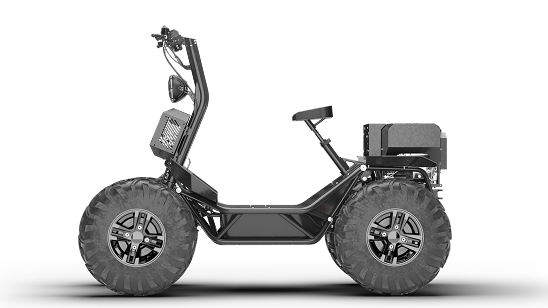

Double seat vs.Single seat Versions

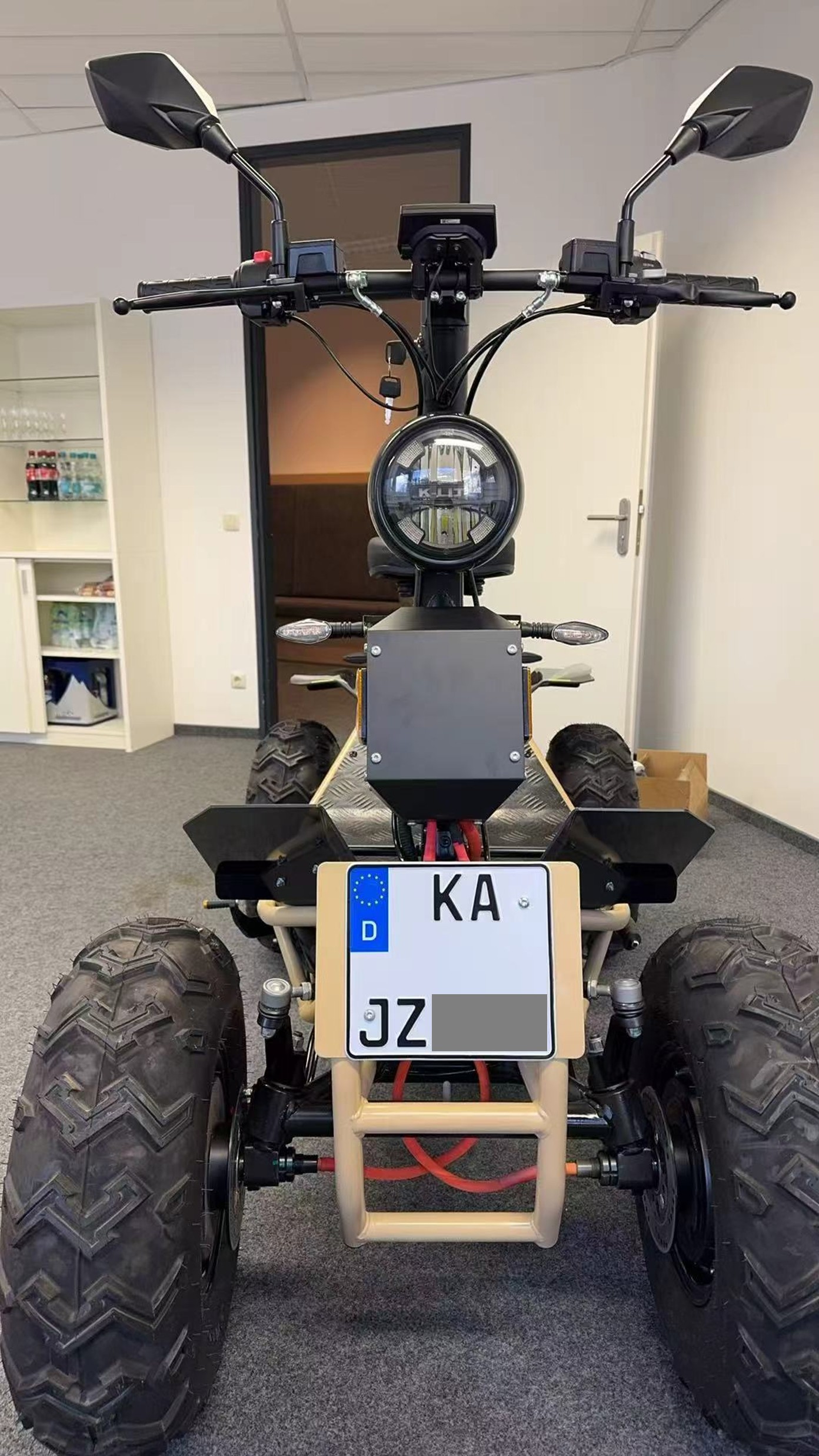

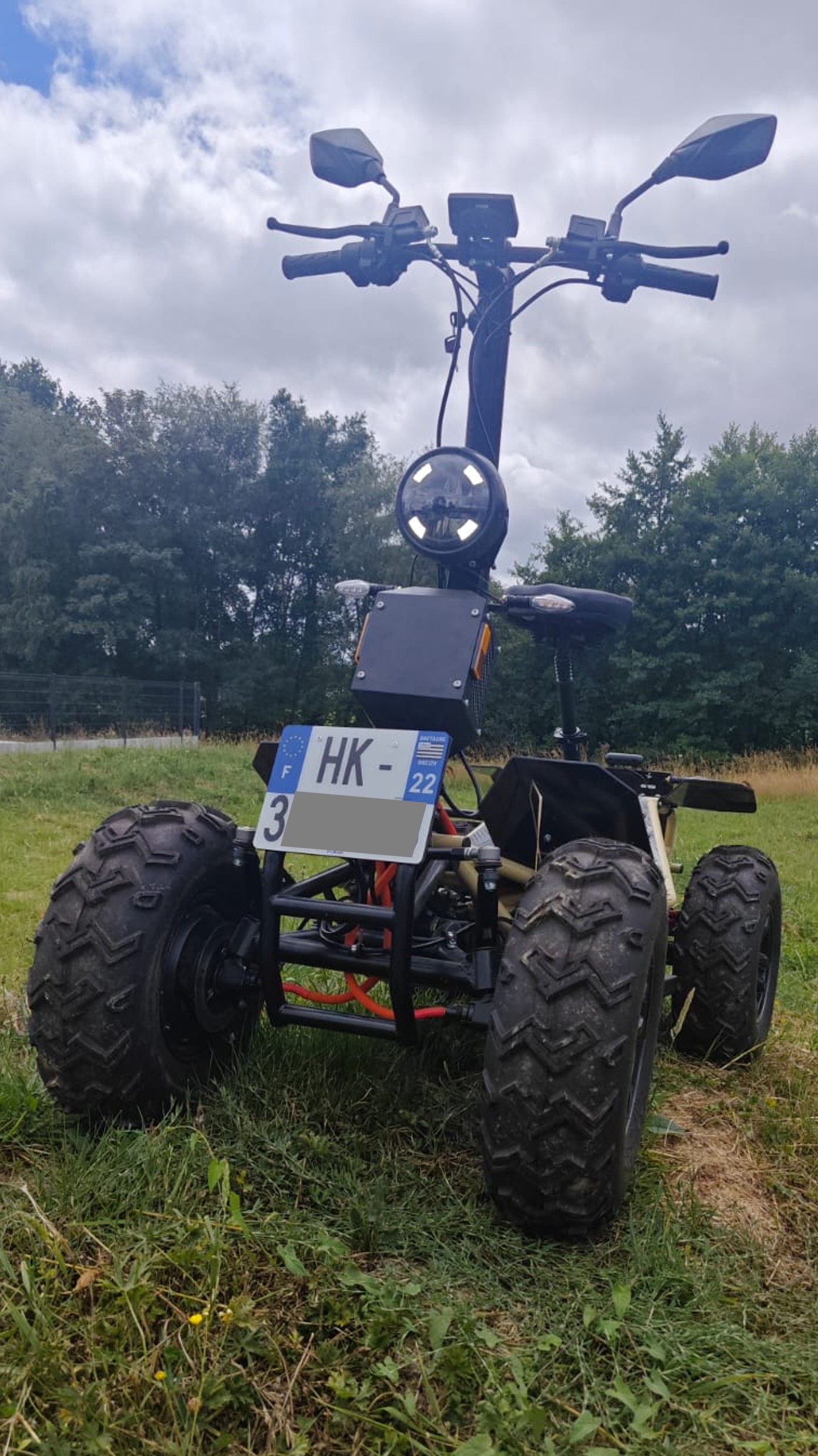

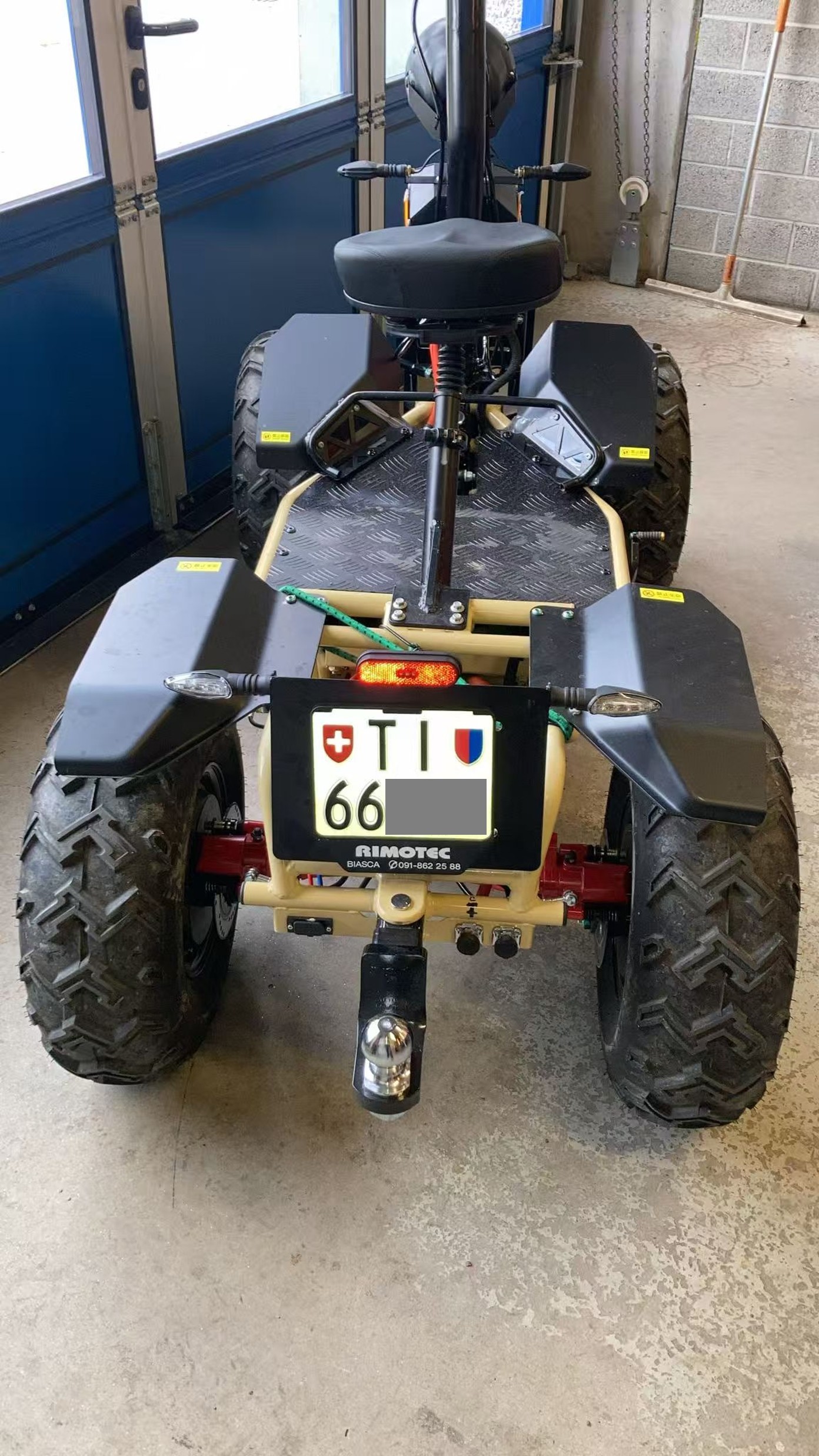

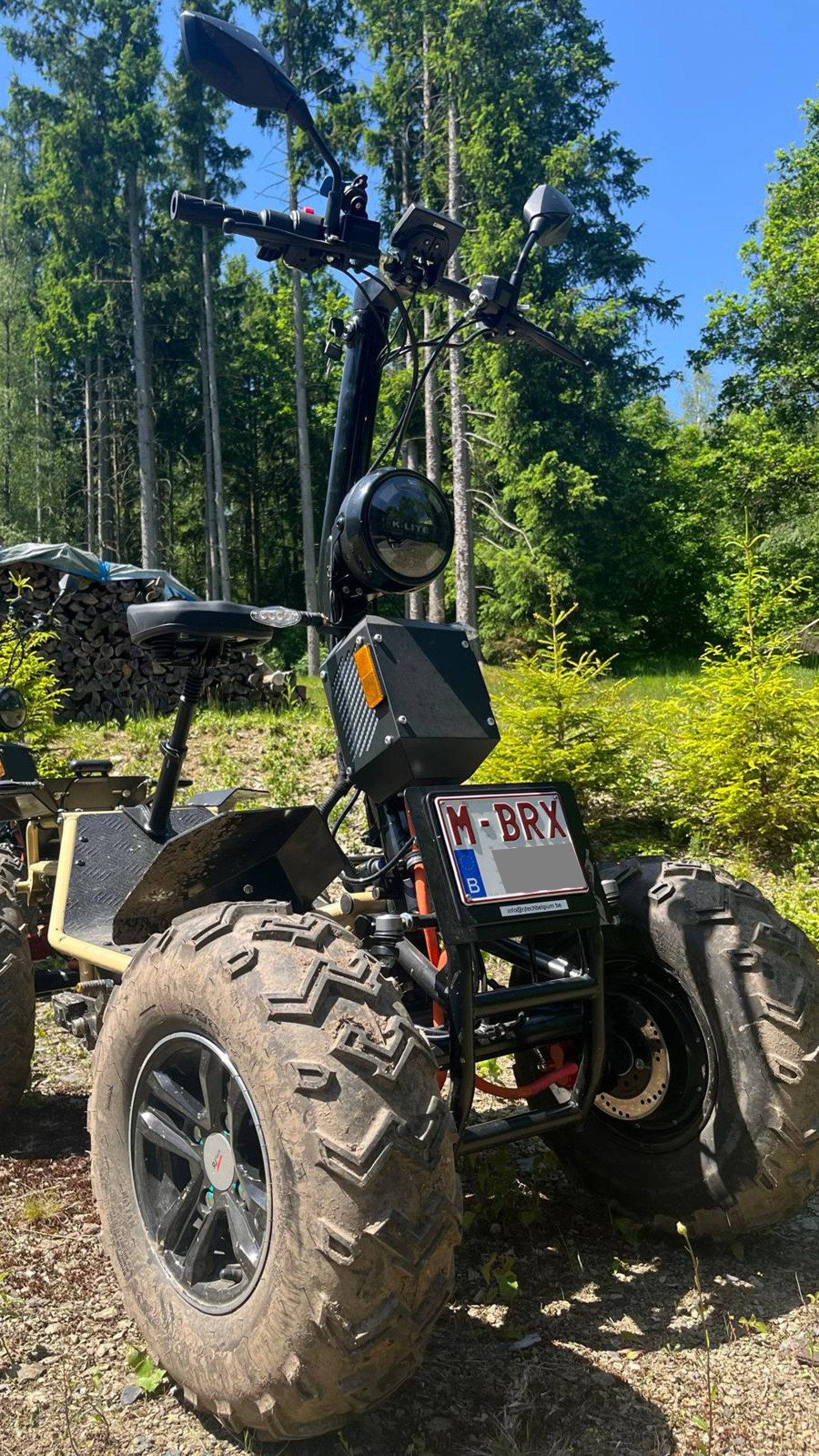

Road Qualification

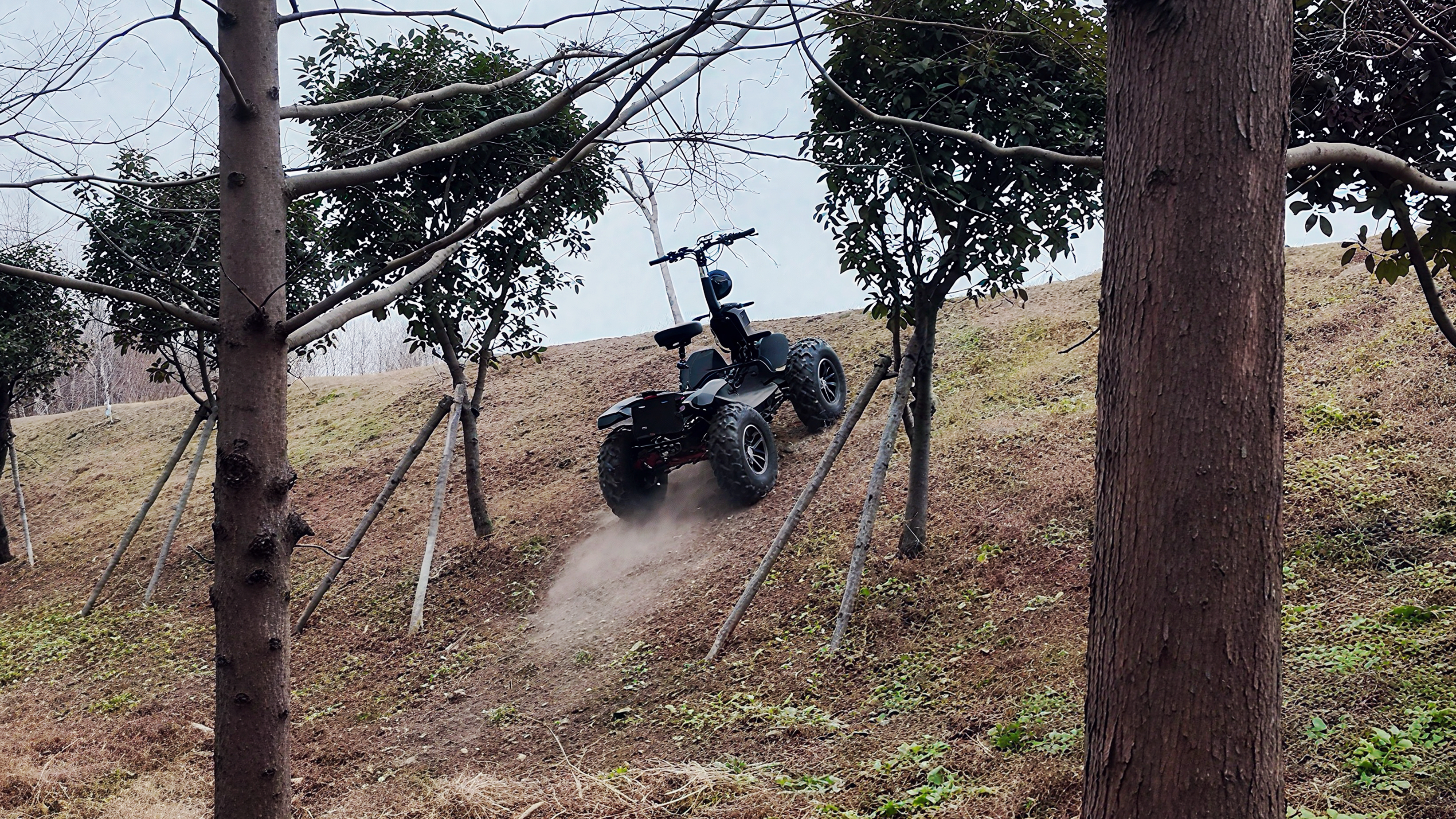

Adventure-grade Electric Off-road Vehicle – Built to conquer all terrains.
CE marking is applicable to the 28 countries of the European Union.

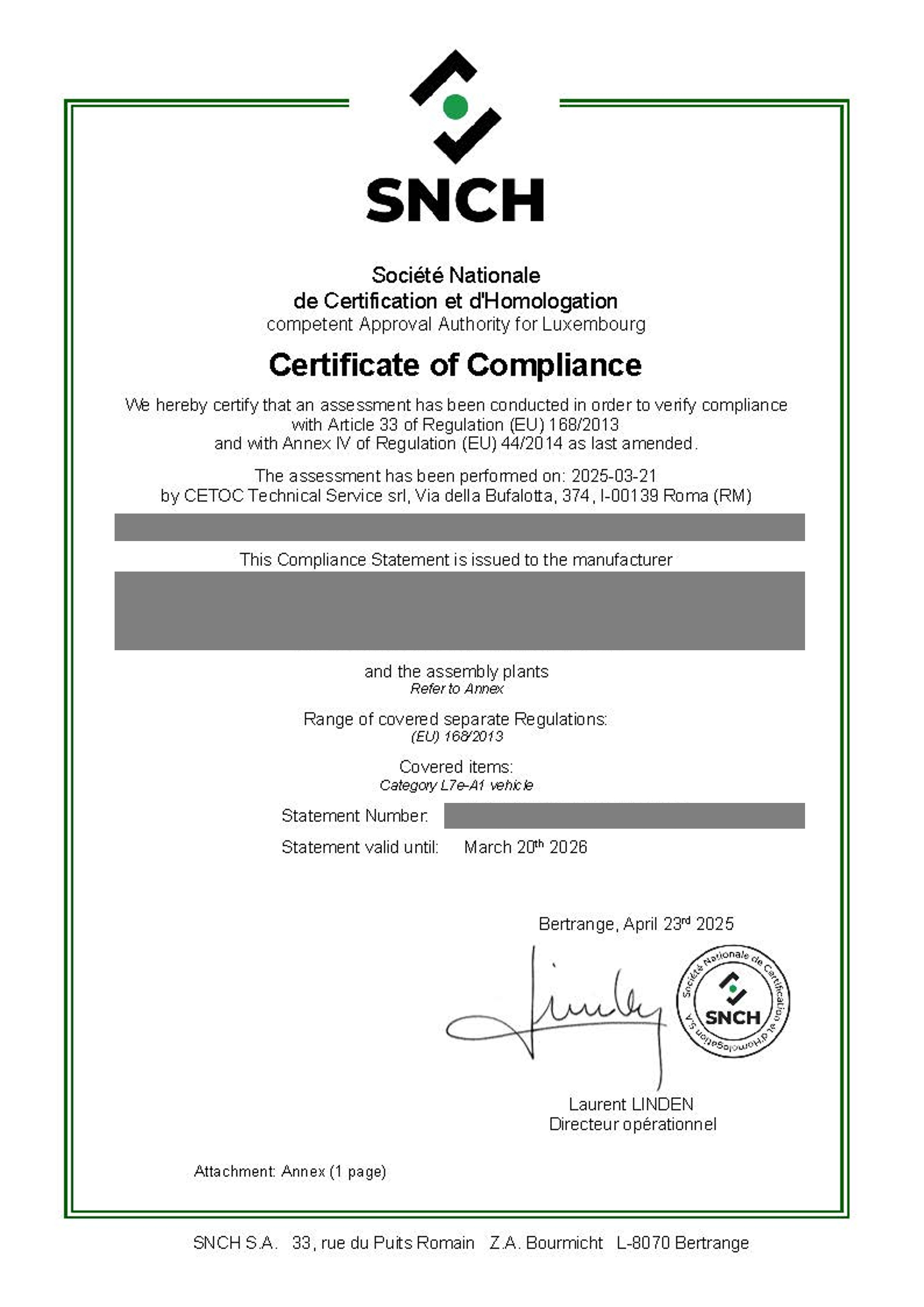

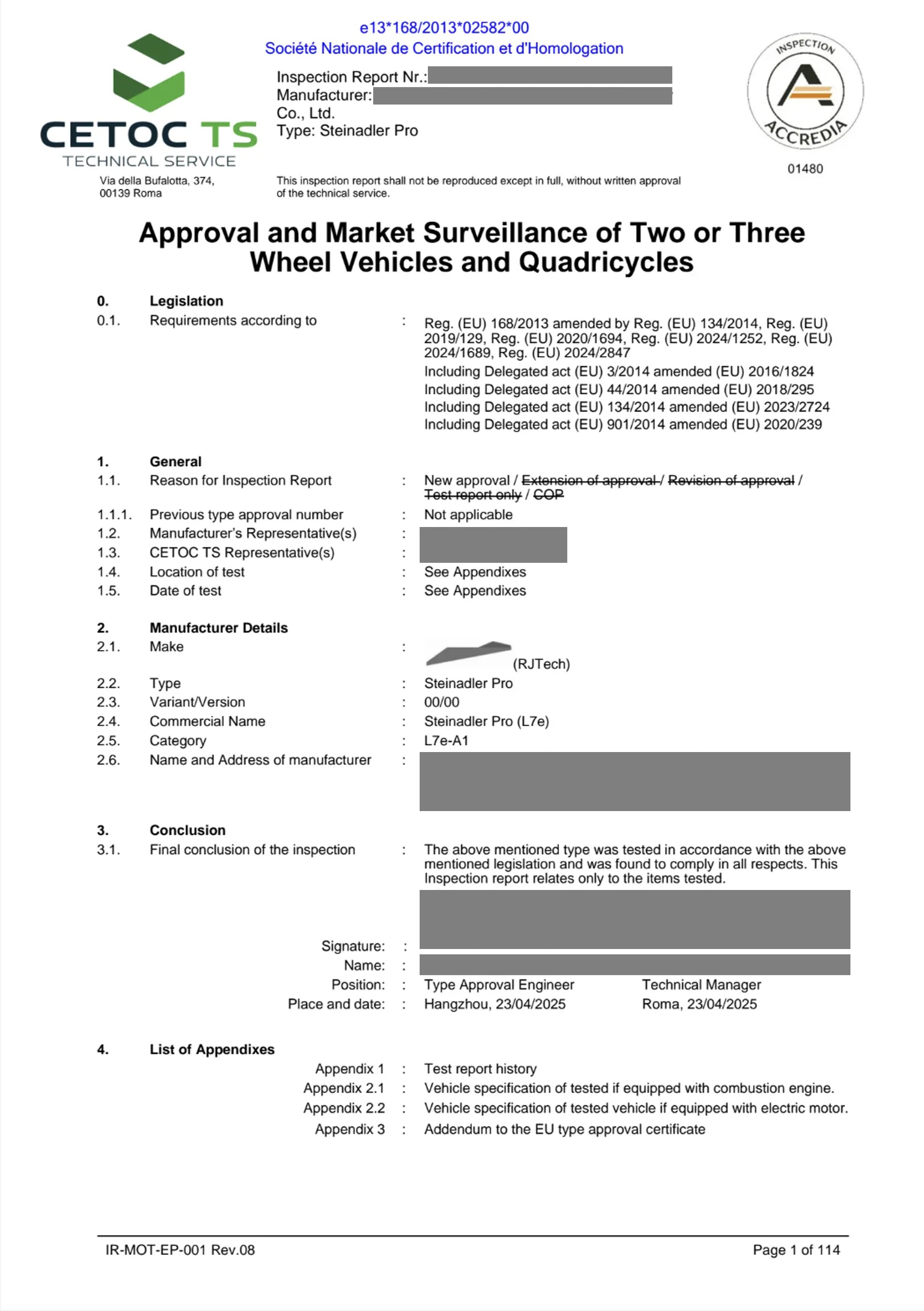

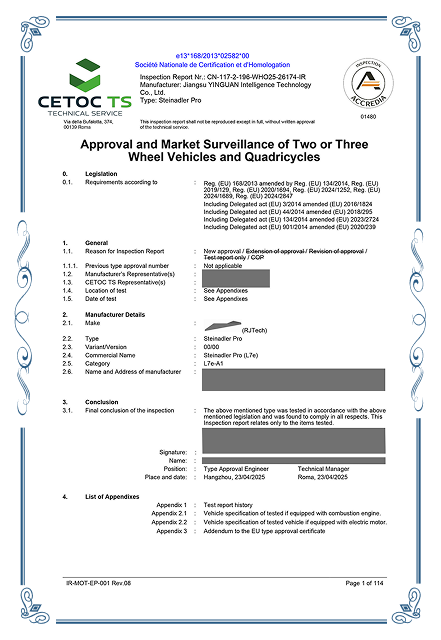

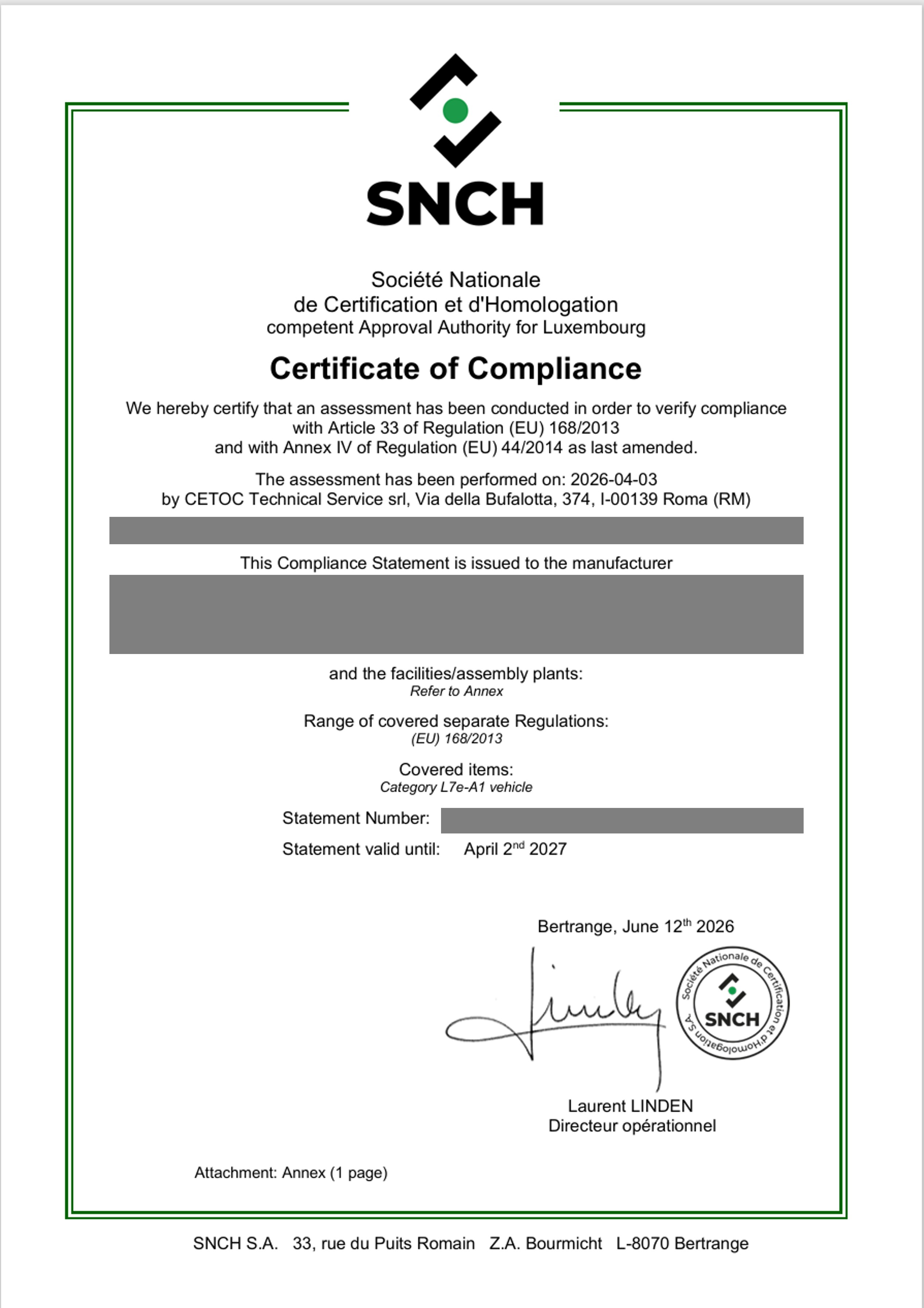

Certification of Vehicle Compliance
This certificate is an official Statement of Compliance within the EU type-approval system.

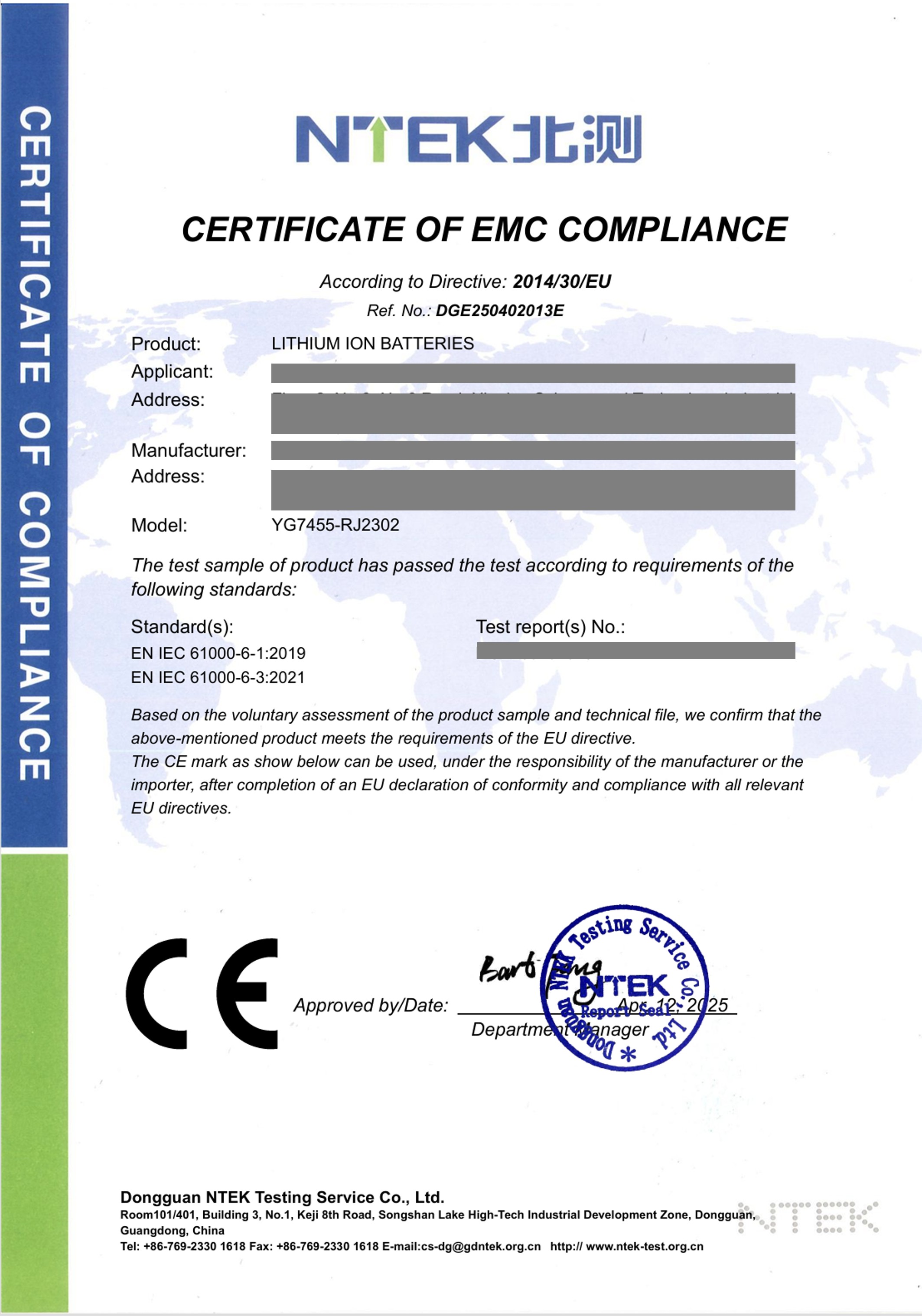

Certification of EMC Compliance
The battery passed the tests according to the EU harmonized standards EN IEC 61000-6-1 and -6-3

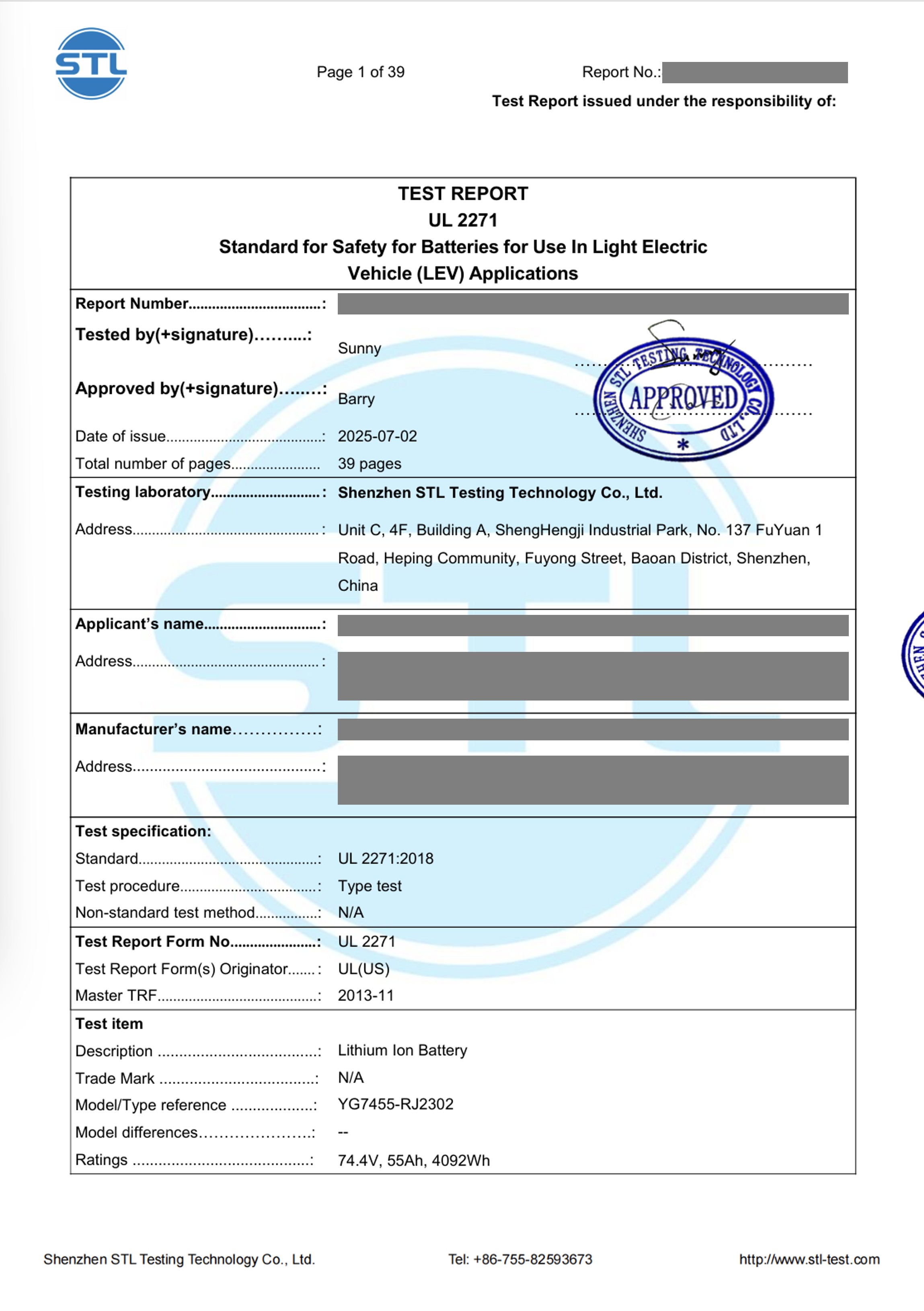

UL 2271 Safety Test Report
UL 2271 is a critical safety certification standard for the battery in North America
FAQs
Find quick answers to common questions about our products and services here. Can't find what you need? Contact our support team for assistance.
01
1. What is an L7e-A1 category vehicle? How is it classified under EU regulations?
The L7e-A1 is a European regulatory classification for "Heavy On-Road Quads." It primarily refers to All-Terrain Vehicles (ATVs) with handlebar steering and a straddle seat. As part of the EU "L-category" framework, these vehicles must meet stringent safety and environmental standards to ensure they are fit for public infrastructure.
02
2. Which terrains and environments is this ATV suitable for?
The Steinadler Pro L7e is an EU L7e-A1 certified ATV featuring a quick-release tire system that allows for easy switching between urban street and off-road modes. It is designed for multi-scenario use, including urban roads, forests, deserts, farmlands, coastal beaches, and snow-covered terrain.
03
3. Do I need a driver’s license and registration to operate this vehicle in Europe?
Yes. To operate an L7e-A1 vehicle on public roads, it must be properly registered with valid license plates. Drivers generally require a Class B (Car) license or a national equivalent, depending on specific member state regulations. Our authorized dealers is available to guide you through the local registration process.
04
4. Is this vehicle street-legal？Can it be driven on public roads in Europe?
Absolutely. The Steinadler Pro L7e holds full EU L7e-A1 Type-Approval, certifying it as a fully street-legal vehicle. It can be driven on public roads across all EU member states for daily commuting and utility purposes, subject to local traffic laws.
05
5. What are the payload and towing capacities? Is it suitable for agricultural or property maintenance use?
The Steinadler Pro L7e is a robust workhorse with a maximum payload of 200kg and a towing capacity of 400kg. Its compatibility with optional rear seating or a powered trailer makes it an excellent choice for agricultural operations, property maintenance, and light-duty logistics.
06
6. What is the range and battery performance of this ATV? Is it suitable for long-distance exploration in the European countryside?
The standard configuration features a 4.092kWh battery providing a range of ≥80km, perfect for exploring the European countryside. For heavy-duty towing or operation in extreme cold, we recommend the optional Range Extender to ensure uninterrupted performance.
07
7. What are the dimensions and weight? How easy is it to transport?
The Steinadler Pro L7e is designed for compact transport, with folded dimensions of 1818 x 918 x 732 mm and a curb weight (including battery) of 205kg. It can be easily transported across borders using a standard trailer, loading platform, or a flatbed truck secured with standard vehicle tie-down straps.
08
8. Where can I find an authorized dealer for a test drive?
RJ Tech has established a growing network of partners across Sweden, Switzerland, France, Germany, and Saudi Arabia. To experience the Steinadler Pro L7e firsthand, please visit our [Dealer Locator Page] to find your nearest showroom.
09
9. What are the warranty and after-sales service options in Europe?
We stand behind our quality with a standard 1-year warranty (extended to 2 years for all units sold in Europe). RJ Tech's after-sales network includes dedicated service points in Sweden, France, Germany, the Netherlands, and Switzerland, ensuring professional maintenance and technical support.
010
10. What are the motor power and torque figures? Can it handle steep inclines?
The Steinadler Pro L7e features an advanced Quad-Motor Drive System. Four independent in-wheel hub motors deliver a combined peak power of 14kW, with a "Special Mode" capable of reaching 20kW. With a staggering 536Nm of wheel torque, it can effortlessly conquer 35-degree slopes from a dead stop.
11
11. Is the vehicle built for all-weather use?
Yes. The Steinadler Pro L7e is built to withstand the European climate, rated for operation between -20°C and +45°C. With an IP67 waterproof and dustproof rating for all critical components, it remains reliable through heavy rain, mud, and winter snow.
12
12. What safety features does this ATV have with? Does it include compliant protective structures?
Safety is paramount. The vehicle features EU-compliant LED turn signals and optimized ergonomic foot pedals. The braking system integrates a combination of independent front/rear hydraulic disc brakes, a foot brake, a parking brake, and a CBS (Combined Braking System), delivering confident control and enhanced safety.
13
13. What are the advantages and features of the Steinadler Pro L7e compared to competitors?
The Steinadler Pro L7e is the only ATV in its class to feature an Intelligent Vehicle Control Unit (VCU) that manages smart power distribution to each hub. Its unique combination of independent four-wheel electric drive, IP67 protection, and the modular quick-release tire system provides a level of adaptability that traditional ATVs cannot match.
14
14. What is its ground clearance and suspension system? Can this quad handle rugged mountain trails?
With a 230mm ground clearance (customizable ±30mm) and an independent suspension system, the Steinadler Pro L7e is designed to soak up impacts and maintain stability on rugged and uneven mountain paths.
15
15. Are there mounting interfaces for accessories? Where can I buy genuine accessories?
Yes. The Steinadler Pro L7e offers options for installing front/rear seats, quick-switch street/off-road tire components, and a powered trailer. You can browse and purchase the full catalog of genuine parts on our [Official Accessories Page]
16
16. Does this vehicle have storage space or rack options?
Yes. You can opt to install front or rear storage boxes (30~45L in size) or add a powered trailer based on your needs. Visit our accessories store[Official Accessories Page] for more details.
17
17. What is the top speed? Is it adjustable for different levels?
The Steinadler Pro L7e has a top speed of 70 kph. To ensure safety and efficiency, it features three selectable drive modes (Low, Medium, and High), allowing the operator to limit speed based on terrain or driver experience.
18
18. What advice do you have for first-time ATV buyers in Europe?
For beginners, we highly recommend the Steinadler Pro L7e "On-Road" version. It offers the best of both worlds as a fully EU L7e-A1 certified, road-legal vehicle that transforms into a trail-ready machine in moments, thanks to the quick-release tire system—delivering exceptional value. Its four-wheel independent electric drive and 80km+ range ensure a fantastic, versatile driving experience. Designed with beginners in mind, the intuitive thumb throttle and dual hand/foot braking systems enhance control and safety, while IP67 protection provides peace of mind on any terrain.
19
19. How can I contact customer support for technical or purchasing inquiries?
Our team is ready to assist you. Please reach out via our [Contact Form] or email us directly at sales@rjtech-offroad.com for expert support regarding sales, technical specifications, or regional partnerships.
L7e‑A1-approved
EU L7e-A1 certified – fully street-legal and plate-ready.
Adventure‑grade
E-Offroad Vehicle
E-Offroad Vehicle
Adventure-grade electric off-road vehicle – built to conquer
all terrains.
all terrains.
Technical Highlights
Adventure-grade electric off-road vehicle – built to conquer all terrains.
4WD
IP67 waterproofing
100km range
3.5h fast charge
Applicable Scenarios
EAdventure-grade electric off-road vehicle – built to conquer
all terrains.
all terrains.
Core Positioning
Technical Highlights
Applicable Scenarios
-
Gross Vehicle Weight (incl. battery)~205 kg
-
Dimensions (L×W×H)1818 × 919 × 1325 mm
-
Wheelbase1257 mm
-
Ground Clearance280 mm (adjustable ±30 mm)
-
Payload Capacity137/200kg
(adjustable via suspension stiffness)
-
Battery Capacity72V / 60Ah
-
Driving Range~100 km (Urban) / 51 km (Mixed Terrain)
-
Charging Time~3.5 Hours (Fast Charge)
-
Drive TypeFull-Time Four-Wheel Drive (4WD)
-
MotorsFour independent hub motors, total peak power 14 kW (3.5 kW per motor), up to 17 kW in extreme mode
-
Max. Gradeability35°
-
Braking SystemHydraulic Disc Brakes (Front & Rear) + Parking Brake + Foot Brake + CBS (Combined Braking System)
-
TyresAT22×7-10 35L standard; interchangeable with street tyres
-
Protection RatingIP67 for battery compartment and motors (below rider foot-level), IP68 optional
-
CertificationEU L7e-A1 Road Approval (street-legal)
-
Optional AccessoriesSingle/Double seats, One-touch street/off-road tyre swit-ching system, Powered trailer hitch
Nordic Region
Desert Area

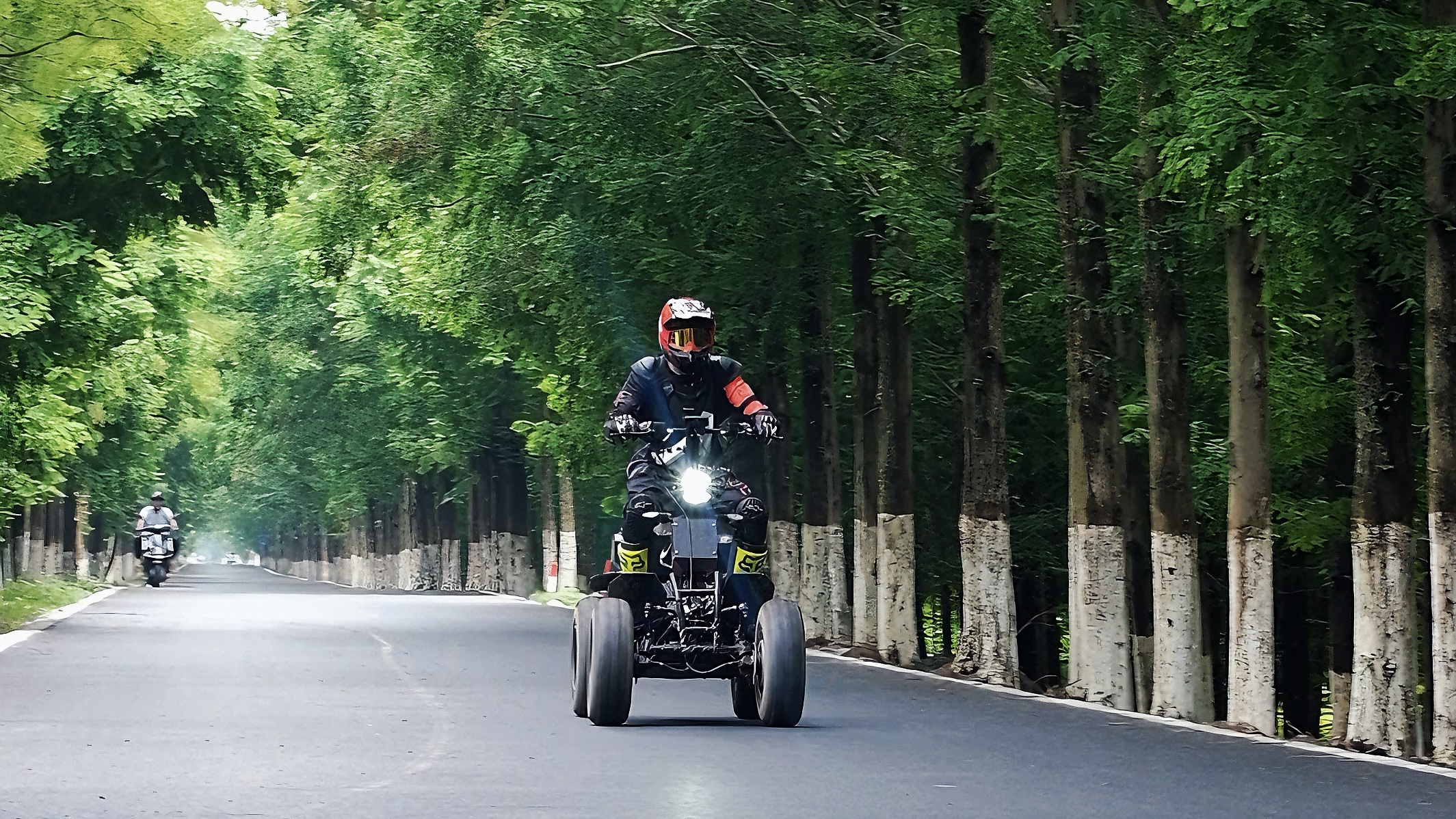

Urban Roads

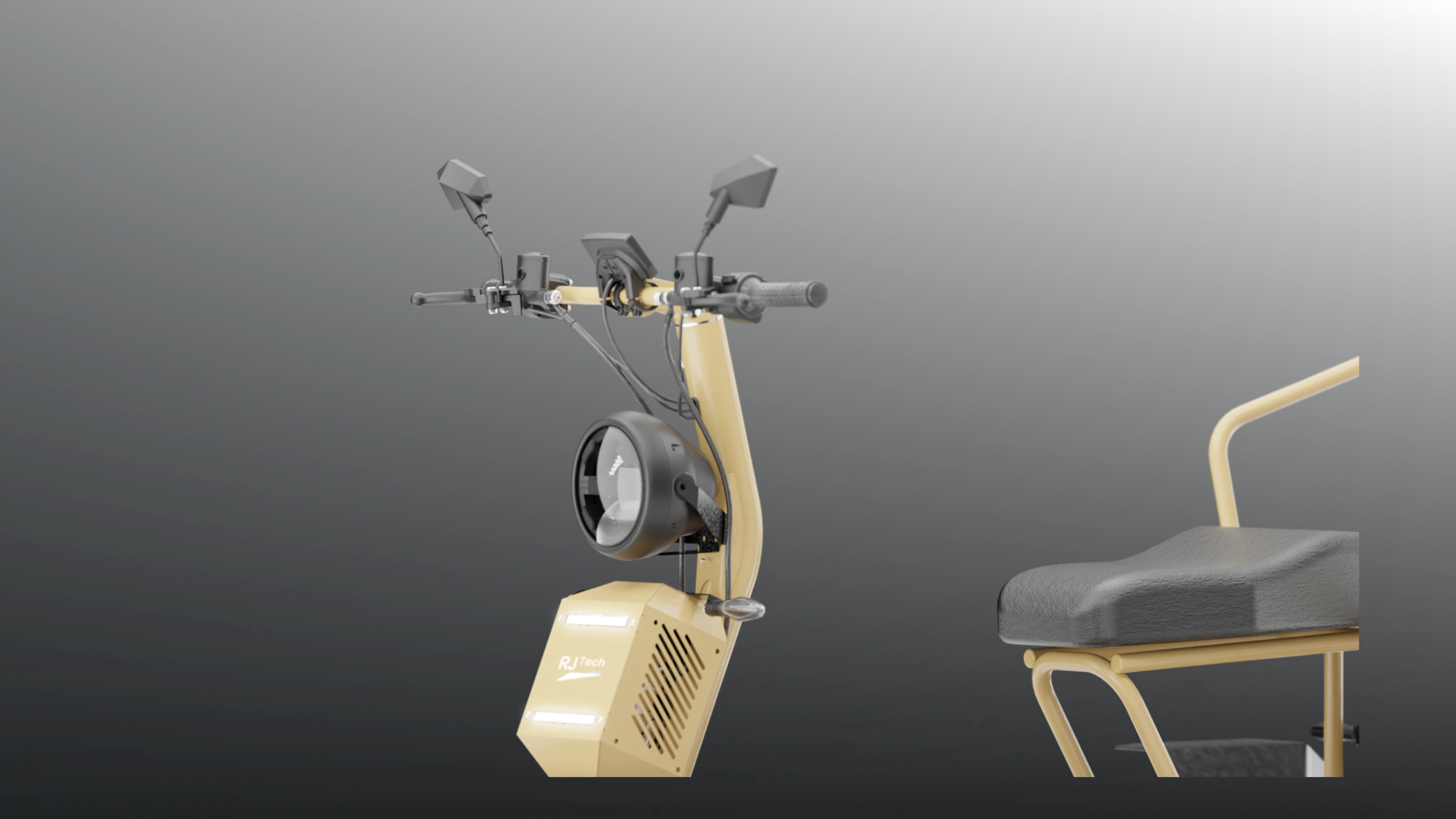

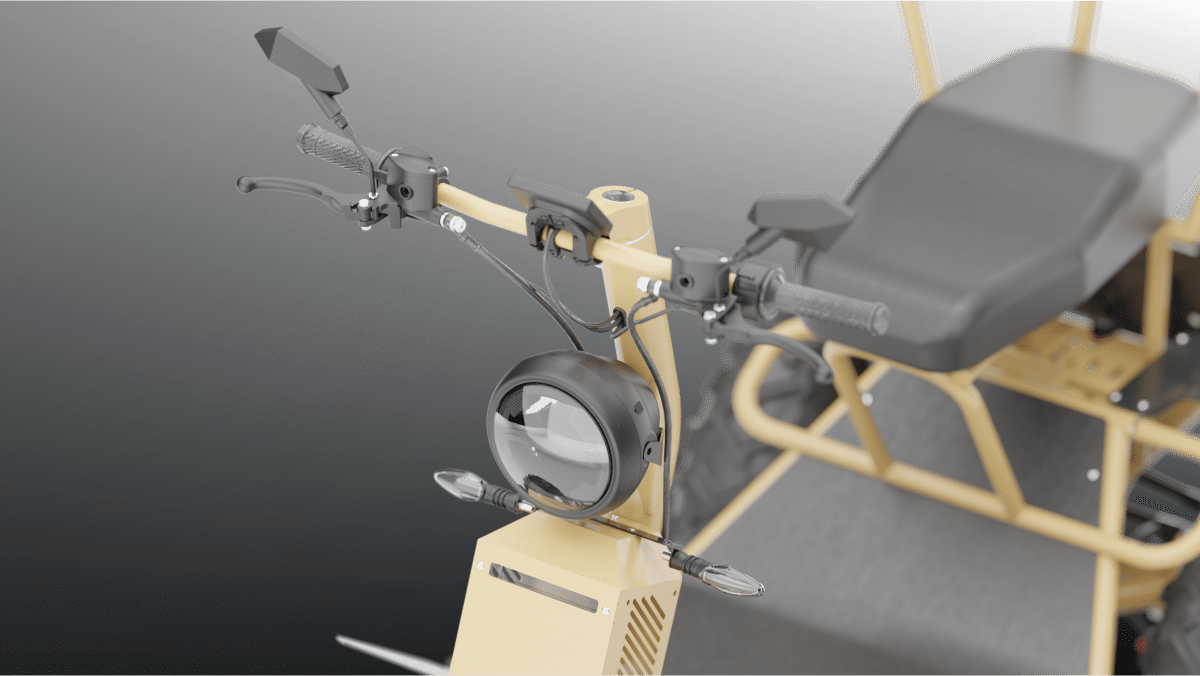

Turn signal
Pedal

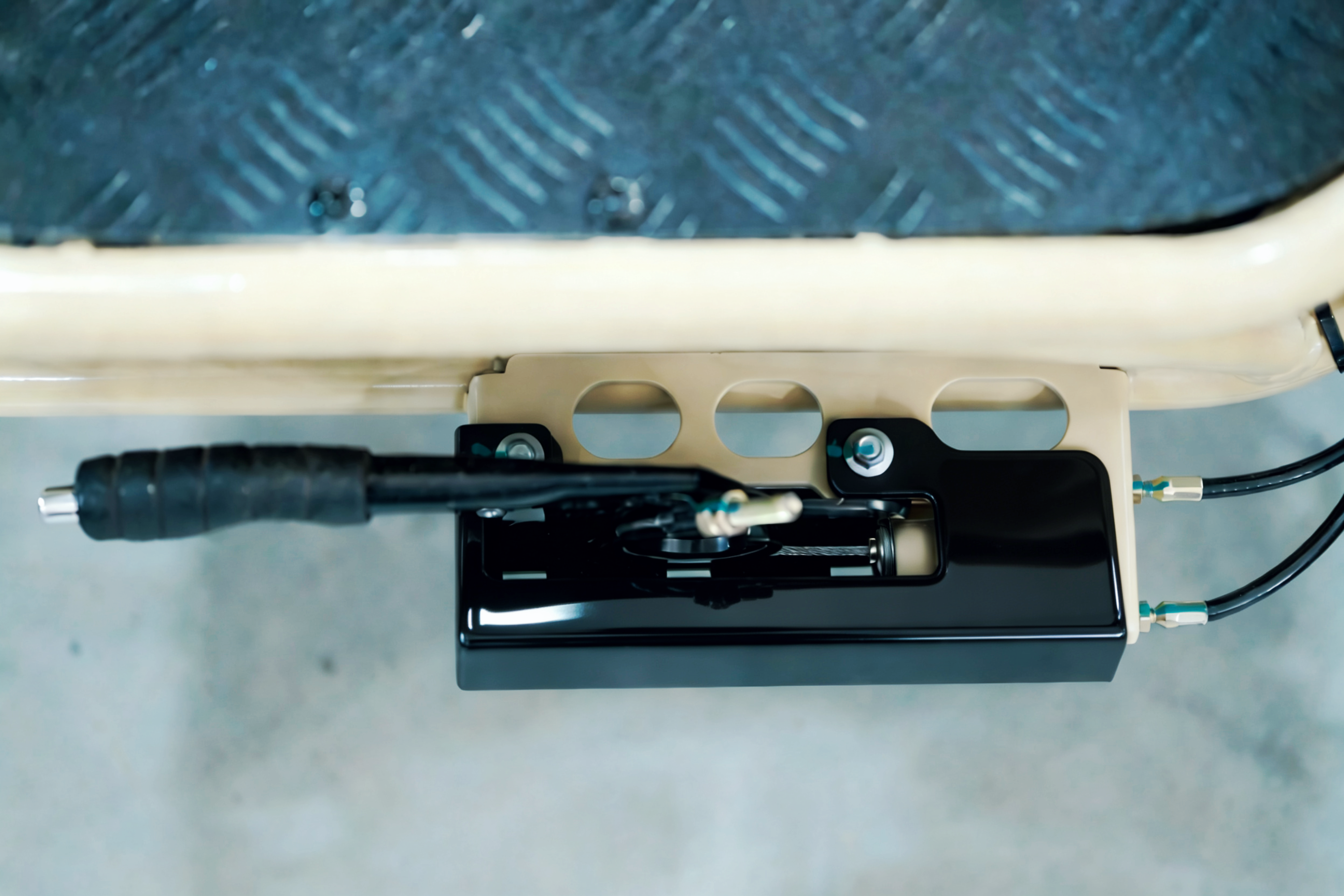

Handbrake

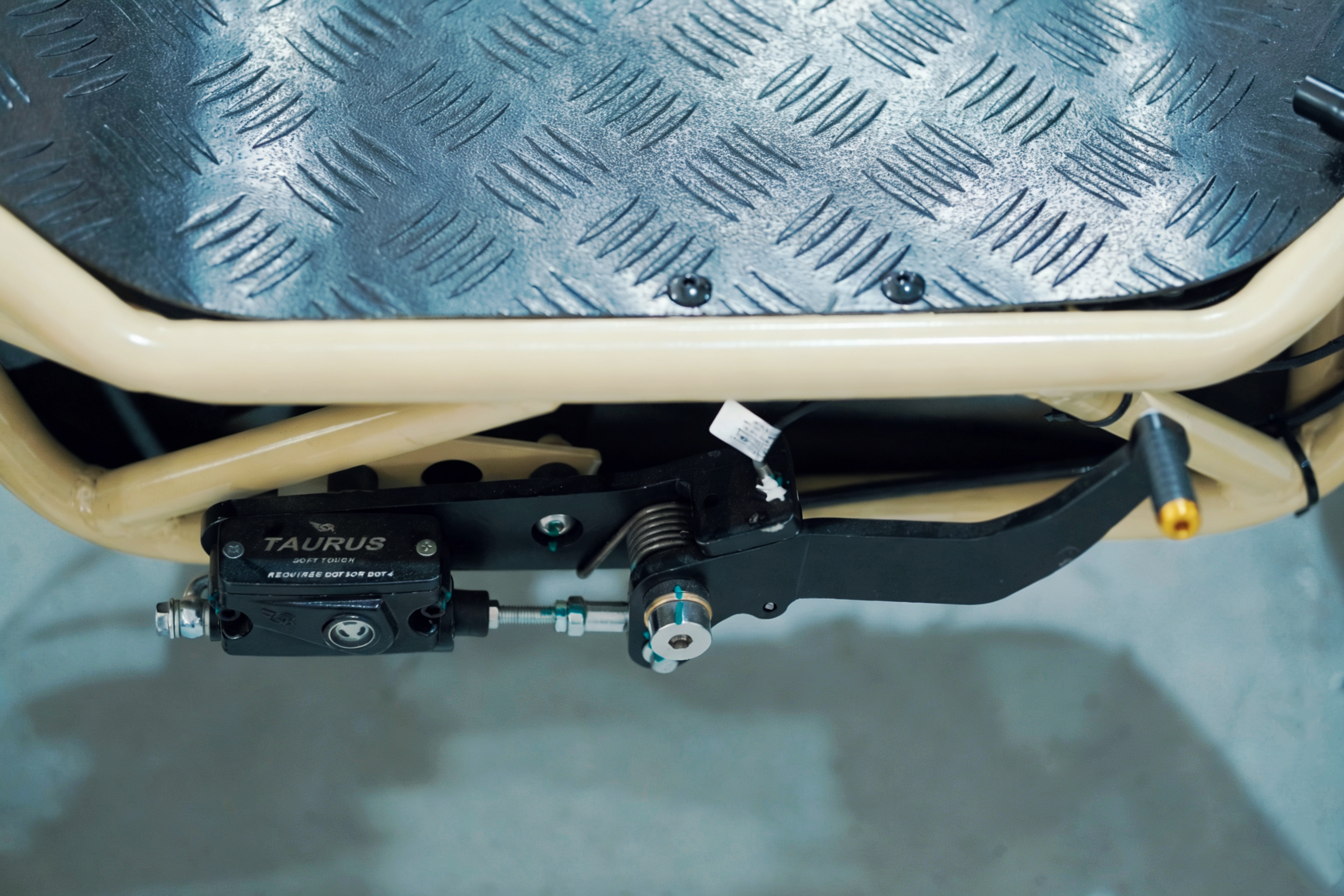

Foot brake
Core Positioning
Technical Highlights
Applicable Scenarios
L7e‑A1-approved
EU L7e-A1 certified – fully street-legal and plate-ready.
Adventure‑grade
E-Offroad Vehicle
E-Offroad Vehicle
Adventure-grade electric off-road vehicle – built to conquer all terrains.
Technical Highlights
Adventure-grade electric off-road vehicle – built to conquer all terrains.
4WD
IP67 waterproofing
100km range
3.5h fast charge
Applicable Scenarios
EAdventure-grade electric off-road vehicle – built to conquer all terrains.
-
Gross Vehicle Weight (incl. battery)~205 kg
-
Dimensions (L×W×H)1818 × 919 × 1325 mm
-
Wheelbase1257 mm
-
Ground Clearance280 mm (adjustable ±30 mm)
-
Payload Capacity137/200kg
(adjustable via suspension stiffness)
-
Battery Capacity72V / 60Ah
-
Driving Range~100 km (Urban) / 51 km (Mixed Terrain)
-
Charging Time~3.5 Hours (Fast Charge)
-
Drive TypeFull-Time Four-Wheel Drive (4WD)
-
MotorsFour independent hub motors, total peak power 14 kW (3.5 kW per motor), up to 17 kW in extreme mode
-
Max. Gradeability35°
-
Braking SystemHydraulic Disc Brakes (Front & Rear) + Parking Brake + Foot Brake + CBS (Combined Braking System)
-
TyresAT22×7-10 35L standard; interchangeable with street tyres
-
Protection RatingIP67 for battery compartment and motors (below rider foot-level), IP68 optional
-
CertificationEU L7e-A1 Road Approval (street-legal)
-
Optional AccessoriesSingle/Double seats, One-touch street/off-road tyre swit-ching system, Powered trailer hitch
Reliability and Performance Data
RJTech has completed a comprehensive series of endurance and braking performance evaluations on the Steinadler Pro. Our certified batteries are engineered to meet the highest industry standards.
